| 产品参数 | |||||
|---|---|---|---|---|---|
| 名称/Name | 型号/Type | 尺寸/Dimension（mm） | 电压和功率/Voltage and power | 重量/Weight | 备注/Remark |
|

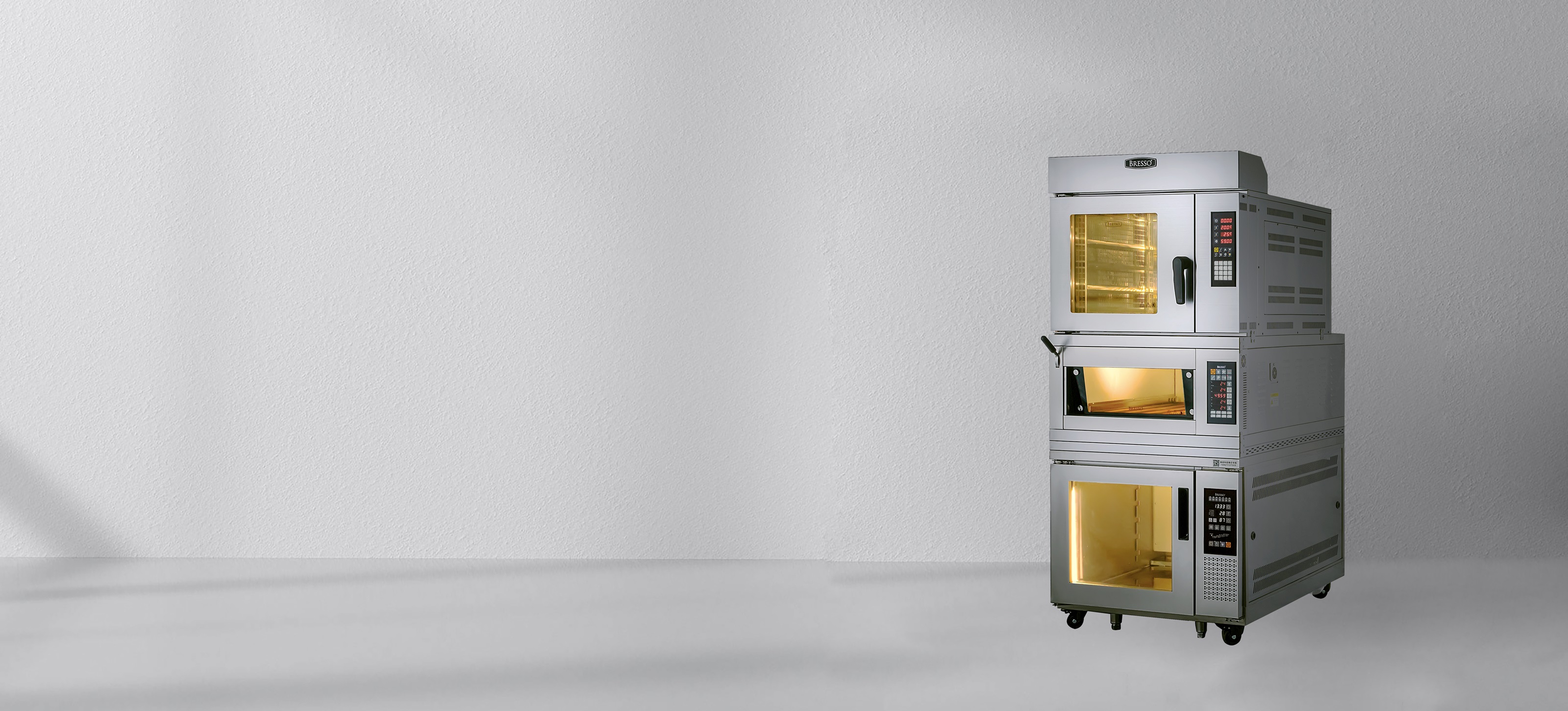

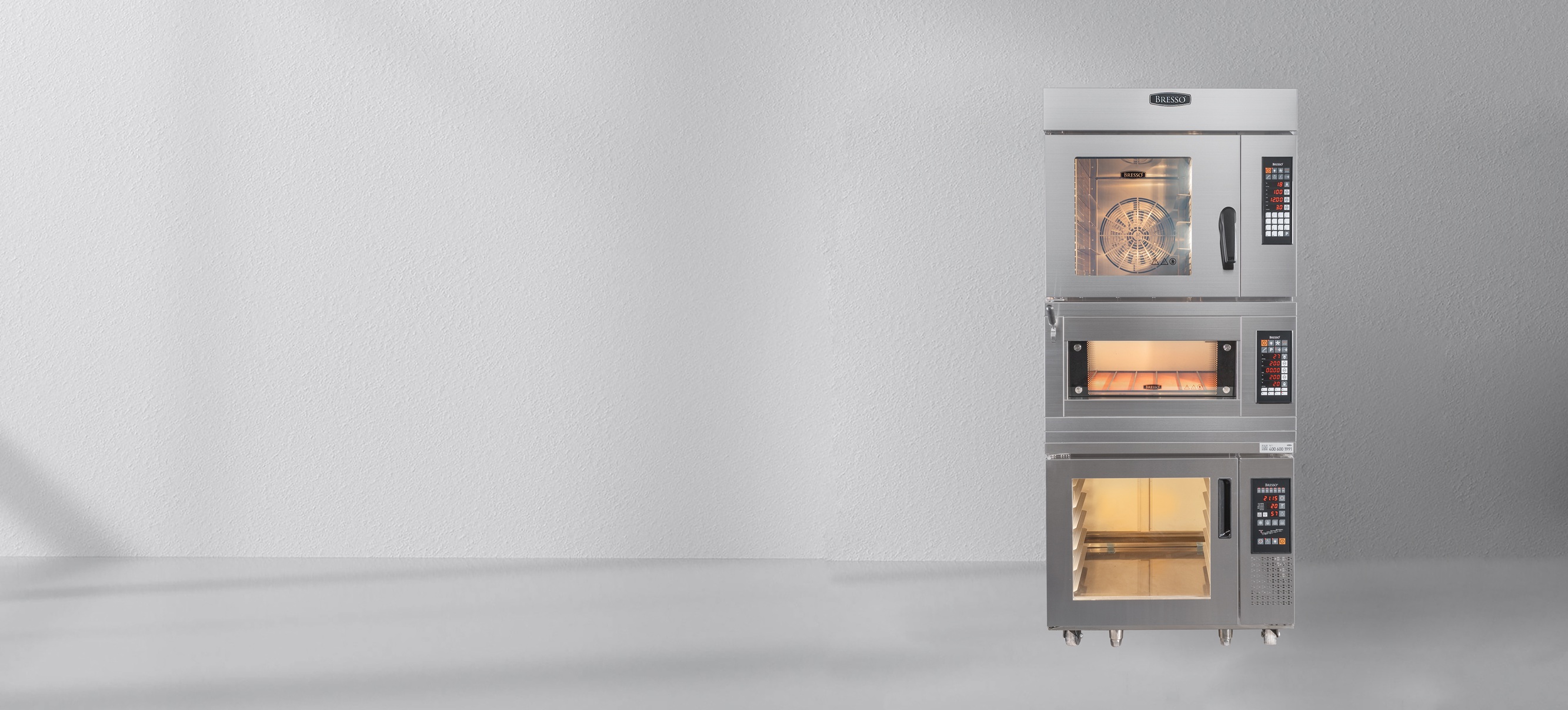

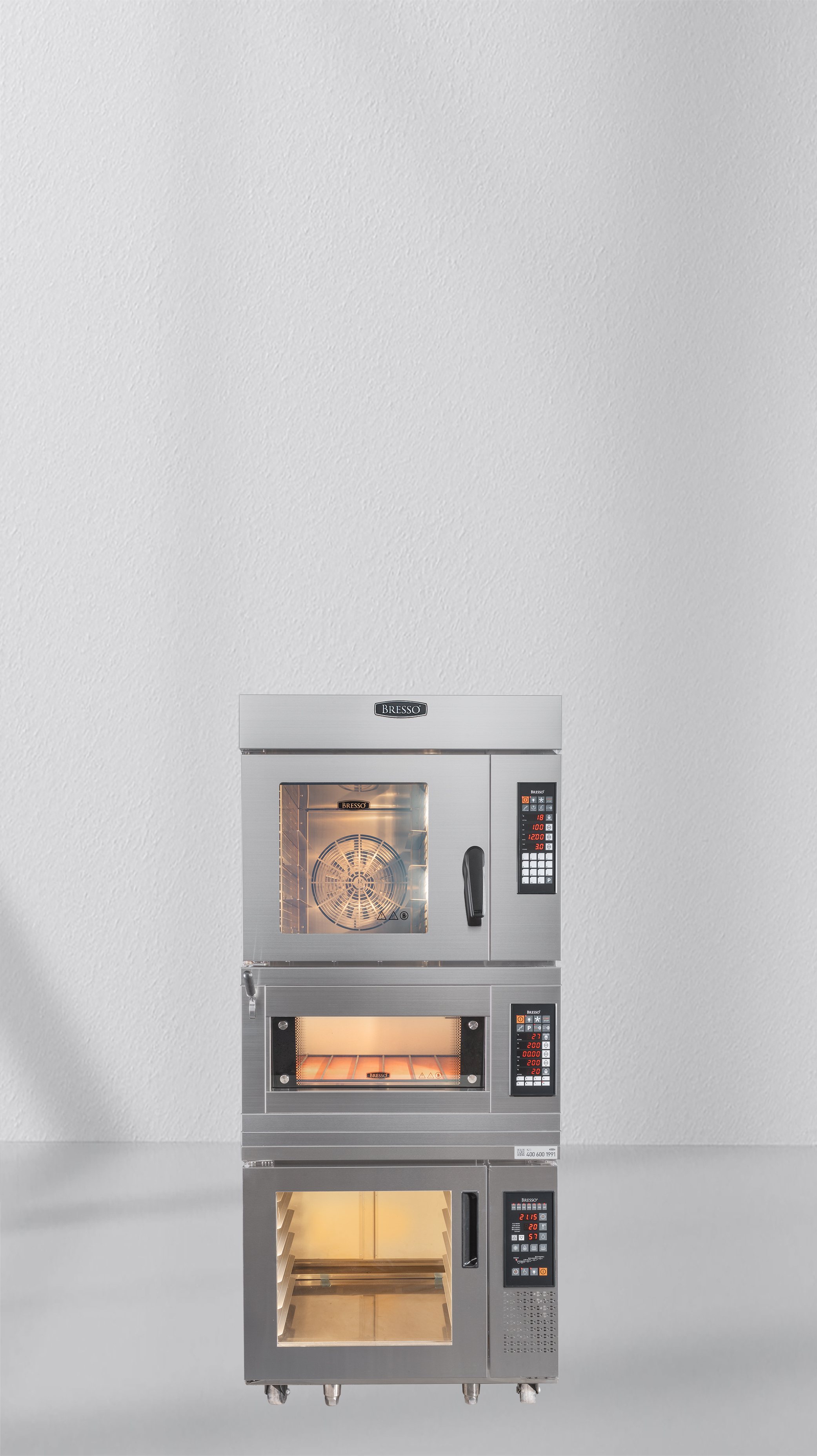

欧式组合炉 European combi oven |

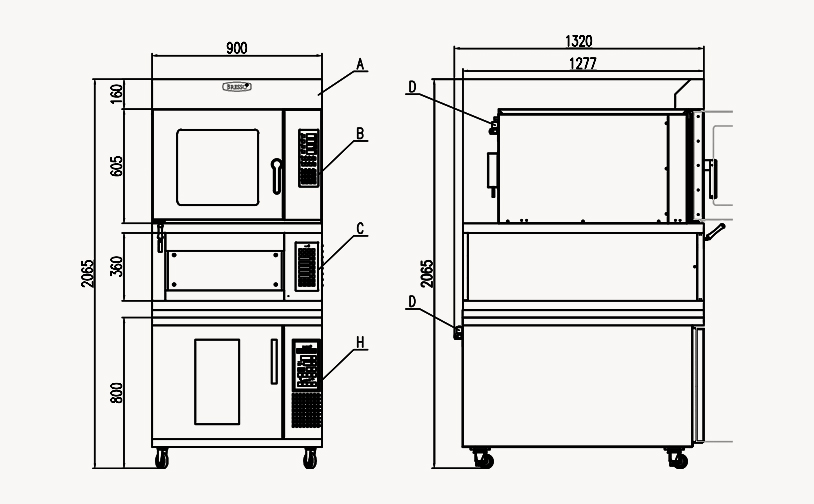

HBWO-2512H | 900mm X 1320mm X 2065mm | 220V/14KW | 425kg |
欧式烤炉一层二盘横盘（带1层石板蒸汽）+五盘热风炉（宽度900mm）+十二盘冷藏醒发箱 1decks2trays European oven(Horizontally)+4trays convection oven(width900mm)+12trays refrigerated fermentation |
| 产品安装 | |||||
| 名称/name | 入水口和排水口/Inlet and outlet | 备注/Remark | |||
|
欧式组合炉 European combi oven |
1/2英寸/1/2英寸 1/2inche/1/2inche |
电源线选择应不低于6平方5芯国标铜电缆;水压不低于2千帕;烤炉进出门门内尺寸应不小于1050mm The power cord selection should be no less than 6 square mete s of 5-core national standard copper cable; the water pressur |
|||
